Small Laser Engraving Cutting Machine
Small Laser Engraving Cutting Machine

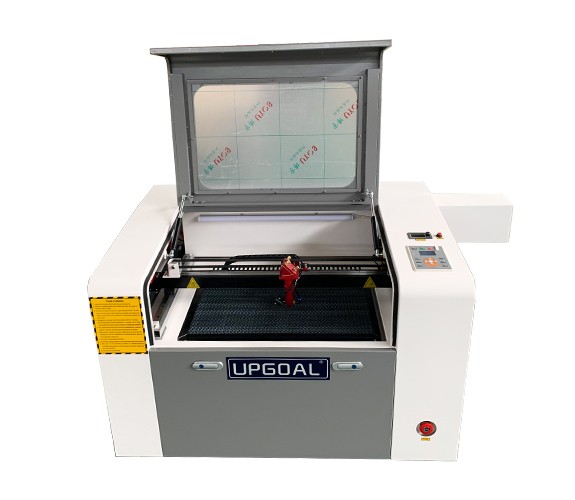

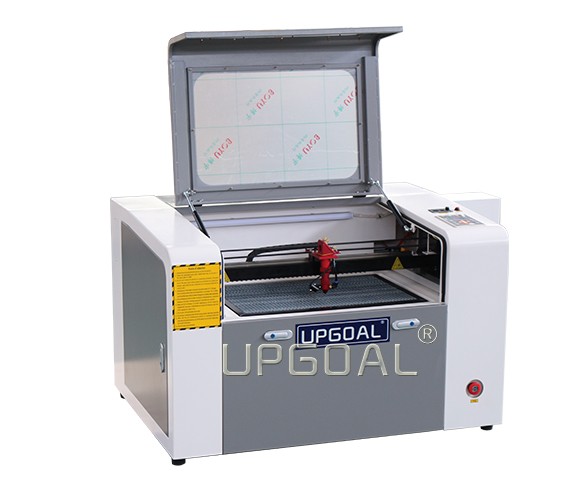

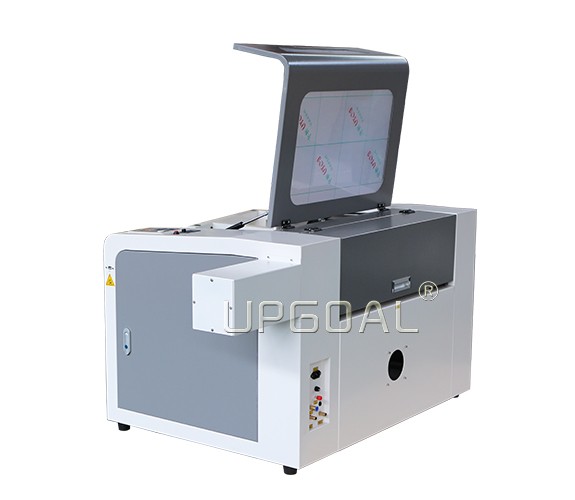

Cheap Desktop 60W Co2 Laser Engraving Cutting Machine 600*400mm

Brief Introduction:

Model: UG-6040L
600*400mm
EFR 60W Co2 laser tube
Honeycomb or knife strip working table
RuiDa 5121 controler

INQUIRY NOW

Applications

Application Industry: Model field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.

Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc

Materials Can work With: Organic glass, acrylic board (the paulownia,  lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.

Features

Laser Head with infrared dot positioning

Newly design, More in according with mechanical engineering. Safe and durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

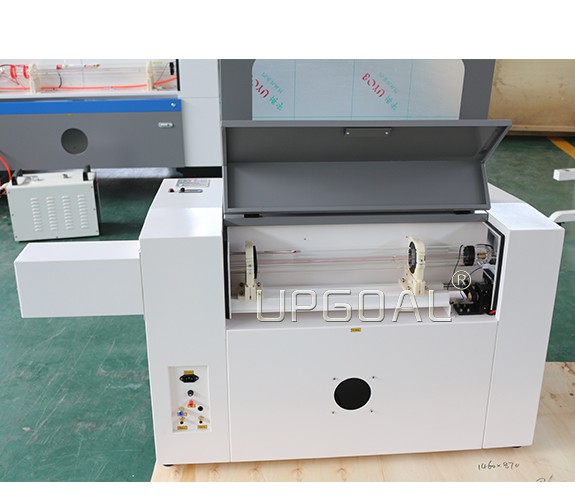

Laser Tube

Adopted stable China EFR 60W Co2 laser tube, long life time.

Working Table

Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.

or

Knife Strip Table:  With oxidation treatment and low reflection ratio Ensured cutting quality.

Beam Path System

Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

Motion System

Imported High precision, low friction force and stand wear and CSK Taiwan linear guide rails and blocks with 3M belt ensured stable transmission, lower noise.

Operation System

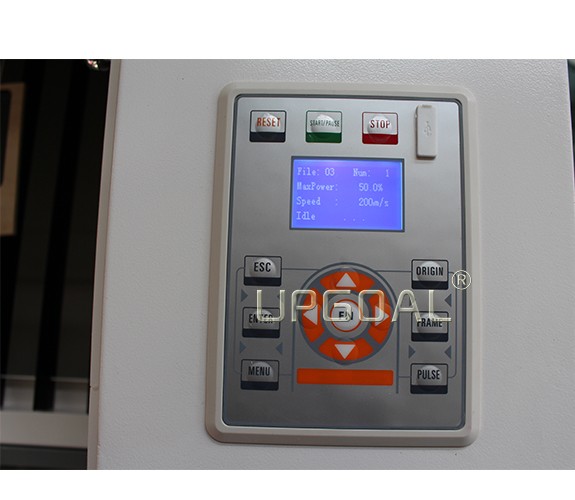

Advanced USB port RD5121 DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts. Optimized heat dissipation effect.


Effective working area

600*400mm

Laser Type

Co2 sealed-off laser tube

Laser tube power

60W( EFR brand, 1200CL model, maximum 70W)

Working table

Honey comb or knife strip

Driver mode

Stepper motor and Driver, Yako brand

Guide rail

Linear square guide rail ( CSK,Taiwan)

Transmission

3M belt transmission

Control panel

English

Laser output control

1-100% software setting

Engraving speed

0-60000mm/min

Cutting speed

0-10000mm/min

Control system

RD5121

Control software

RDWorks V8

Design software when delivery

CorelDraw

Control panel

DSP offline

Resolution accuracy

< 0.01mm

Location precision

< 0.01mm

Highest scanning accuracy

2500DPI

Type of cooling

Water pump cooling( Optional industrial chiller CW-3000)

Water protection system

Yes

Blow-off system

Air pump and air fan

Biggest scanning accuracy

2500DPI

Working temperature

0-45 °C

Operating humidity

5-95% (without condensed water)

Supporting picture format

PLT、DST、DXF、BMP, DWG、AI、LAS,etc

Voltage

AC 220V/110V, 50/60Hz, single phase

Certificate

CE/FDA
